High Density Sack Chute


, High Density Sack Chute

Sort to Four Different Mail Sacks in a Single Compact Chute

, High Density Sack ChuteNPI’s new HDS Chute is an innovative high density parcel sorting solution designed to sort poly bags, boxes, flats, and irregularly shaped packages with ease. Engineered with your valuable floor space in mind, the HDS Chute utilizes four different sack destinations within a single compact chute. With the ability to sort to 400 different destinations within 200 linear feet, the HDS Chute is an unmatched high-density parcel sorting solution with a throughput of 24,000 parcels per hour when used with a dual feed, dual-sided NPI Xstream.

The chute makes it easy to swap out sacks of parcels using a versatile roll-out cart with an ergonomically designed handle, allowing operators to quickly take full sacks of parcels to their next destination with minimal effort.

The HDS Chute is an accurate and labor reducing solution that integrates with NPI’s Xstream Sliding Shoe Sorter and third party parcel sorting systems. Enhance efficiency, save time, and reduce labor requirements with NPI’s HDS Chute.

This innovative sorting chute is engineered to fit the needs of businesses in various industries including Consolidators, eCommerce, Omnichannel, Pharmaceutical, and 3PL companies.

, High Density Sack Chute

HDS Chute Video

Integrate the HDS Parcel Sorting Chute with the Xstream or Third Party Systems

Four Destinations in a Single Chute  |  Sort to 400 Destinations within 200 Linear Feet

Sorts Boxes, Poly Bags, Flats, and Irregularly Shaped Parcels With Precise Accuracy

Sort to 400 Destinations within 200 Linear Feet

An unmatched innovation of sorting parcels in a high density and compact system

Four Destinations in a Single Chute

Select four different destinations in a single chute for your sort plan

Reduce Labor Requirements

Superior to robotic sortation solutions

Sorts Plastic, Poly Bags, Boxes, Flats, and Most Irregular Packages

To handle a wide variety of product types

Integrates with NPI & Third Party Systems

To extend the current capabilities of your operation

Increased Accuracy

Utilize sacks instead of gaylords or carts for increased destination accuracy

Ergonomic Roll-Out Sack Cart

Easily and quickly remove and insert sacks with a versatile roll-out cart

Easily Swap out the Highest Density Sack Without Moving the Cart

Allows operators to swap out the sack closest to them without pulling out the sack cart

Sorts a Wide Variety of Product Sizes, Shapes, and Weights

To meet your sorting needs

Divert Confirmation Sensors

View divert confirmation statistics within NPI's WCS software

On Screen Alerts

Easily view on-screen alerts informing you when a sack is full or present on computer monitors and TV screens

Physical Package Characteristics
LENGTH Min 4” (102mm)/Max 14” (356mm)
WIDTH Min 4” (102mm)/Max 14” (356mm)
HEIGHT Min 0.197” (5mm)/Max 14” (356mm)
MAX DIAGONAL Max 14.5" (368mm)
WEIGHT Min 0.8 oz (23g)/ Max 40 lbs (18.14 kg)
Power Requirements
VOLTAGE 24VDC

Clean, filtered & dried compressed air 100 PSI - SCFM based on system configuration

  • Consolidators
  • Omnichannel
  • Pharmaceuticals
  • Couriers
  • Warehouse Distribution
  • First Mile / Last Mile
  • E-Commerce
  • 3rd Party Logistics
  • Parcel & Post
Sortable Package Types
BoxesPoly BagsFlats
, High Density Sack Chute, High Density Sack Chute, High Density Sack Chute
, High Density Sack Chute

The HDS Chute is a patent-pending product

Related Solutions
, High Density Sack Chute

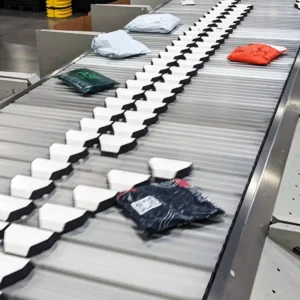

Xstream High Throughput Dual Lane Sliding Shoe Sorter
