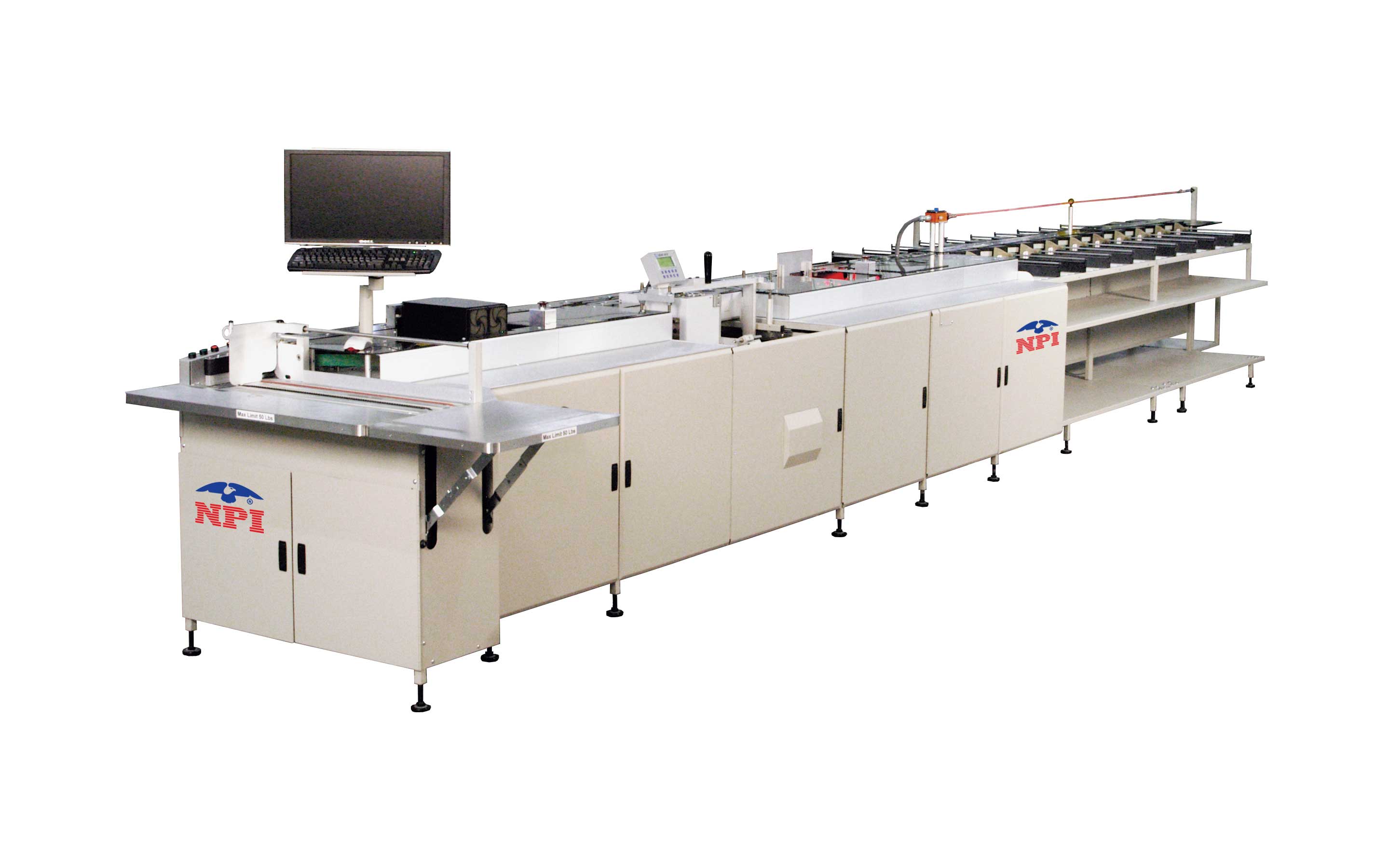

Omega Automated Letter & Flats Mail Sorter

Omega Letter and Flat Mail Sorting System

Based on the industry proven Omega platform, one of the most compact sorters on the market today, the new Omega SP continues moving forward with its industry leading innovation like its predecessor. With options like the Recovery In-Line Labeler and Verifier and speed of up to 20,000 pieces per hour, the Omega SP is the logical choice when looking for a complete sorter.

  • Throughput up to 20,000 pieces per hour
  • The industry’s top performing Multi-Line Optical Character Reader (MLOCR) with text and handwritten capabilities
  • Omni-Directional software-based barcode reader processes IMB, two-dimensional and linear barcodes
  • NPI’s sorter pocket design leverages patented anti jam technology for more reliable processing
  • Requires only one operator and incorporates the popular Microsoft® Windows platform to minimize user training
  • Distributed and transmission-free motor system reduces power consumption and downtime
  • NPI’s new Optesuite postal and analytics software package
  • Can be configured for incoming and outgoing mail operations
  • Processes letters and/or optionally flats up to 0.25” thick
  • User-friendly diagnostic tools
  • Various pocket options
  • Bar code printer
  • e-Forward / LACS Printer

Physical Mail Characteristics

HEIGHT Minimum 3.5″ (88.9 mm)
Maximum 0.375″ (1611.9mm)
THICKNESS Minimum 0.007″ (.178 mm)
Maximum 0.25″ (6.35mm)
LENGTH Minimum 5″ (127 mm)
Maximum 11.50″ for letters (292mm)
Maximum 13″ for flats (330 mm)
WEIGHT Maximum 3.5 ozs for letters
Maximum 13 ozs for flats

Power Requirements

VOLTAGE 208 VAC 3 phase Wye configuration
CURRENT 30 – 90 Amps per phase
FREQUENCY 60 Hz
– or –
VOLTAGE 415 VAC 3 phase Wye configuration
CURRENT 15 – 45 Amps per phase
FREQUENCY 50 Hz

Equipment

FEED TABLE Standard capacity: 30″
STACKER MODULE Pocket capacity: 16″ (406 mm) of mail per bin
PICK-OFF RATE Up to 20,000 mail pieces per hour
READER TRANSPORT UNIT Mounting provisions for Reader Camera

Key Features

  • Uses standard HP print cartridges
  • Superior OCR technology with handwritten capability
  • Extensive Diagnostics



Key Markets

  • Insurance Companies
  • Presort Bureaus
  • Financial Institutions
  • Print Shops
  • Universities
Series
Level(s)
Side(s)
Mail Size
10 1 1 or 2 *A
Flats 1 1 or 2 *B
Mixed 1 1 or 2 *C



Mail Size Reference

A
B
C
Maximum Thickness 1/4″ (6.35 mm) 1/2″ (12.7 mm) 3/8″ (9.5 mm)
Maximum Length 11 1/2″ (292.1 mm) 15″ (381 mm) 13″ (330 mm)
Maximum Height 6 3/8″ (162.1 mm) 12″ (304.8 mm) 12″ (304.8 mm)
